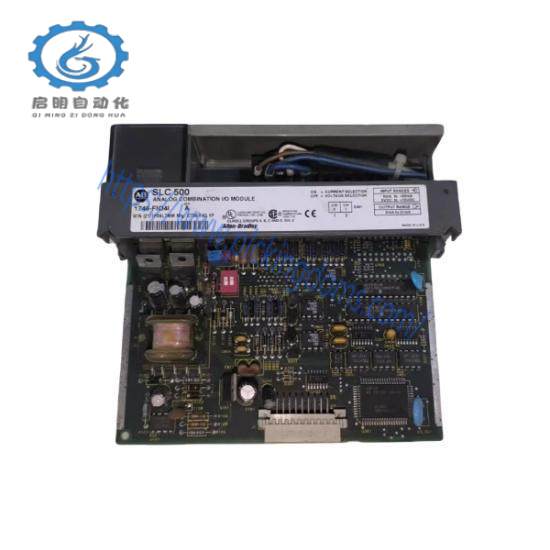

AB 1746-FIO4I Analog Combination Module

Model:1746-FIO4I

Module Type:Analog Combination

Number of Inputs/Outputs:4/4

Input Voltage Range:12-24VDC

Output Voltage Range:0-20mA

Operating Temperature:-25°C to +75°C

Dimensions (WxHxD):91mm x 48mm x 91mm

Weight:155g

Connectivity:RS-485 Modbus Protocol

    The AB 1746-FIO4I Analog Combination Module is engineered to deliver high precision in industrial automation settings, providing seamless integration into a wide array of control systems. It boasts four analog input channels, allowing for the accurate measurement of voltage or current signals, which are essential for monitoring and controlling processes in manufacturing, power plants, and other industries.

    Each channel can be configured for either voltage or current inputs, ensuring flexibility in adapting to different system requirements. The module also features four analog output channels, capable of generating voltage or current signals, which are crucial for controlling actuators, motors, and other devices.

    Designed for robust performance in various environmental conditions, this module operates effectively within a temperature range from -25°C to +60°C, making it suitable for use in a multitude of industrial environments. Its ability to withstand humidity up to 95% non-condensing ensures reliable operation in damp settings.

    Powering the module is a DC power supply, ensuring compatibility with a wide range of industrial systems. The inclusion of a communication interface based on Modbus RTU facilitates efficient data exchange with other devices, enhancing the overall system performance.

    With an IP20 enclosure type and a panel mounting design, the module is protected against dust and splashes of water, while its compact dimensions (90mm x 115mm x 120mm) and lightweight construction (approximately 0.5kg) make it easy to integrate into existing systems without requiring extensive space or additional support structures.
