Operating Voltage:220 V
Number of Channels:4 (Input)
Common Mode Voltage Range:-20 To 20 V
Absolute Input Voltage:Plus/Minus 7.5 VDC or 7.5 VAC RMS (Maximum)
Input Range:-20 To 20 MA
Voltage Rating:Overvoltage Protection: 7.5 VAC RMS
Input Range (DC):-10 To 10 VDC – 1 LSB
Current Rating:Backplane Current Draw: 35 MA at 5 V, 85 MA at 24 V
Isolation:Backplane: 500 VDC, Enclosure: Open Type

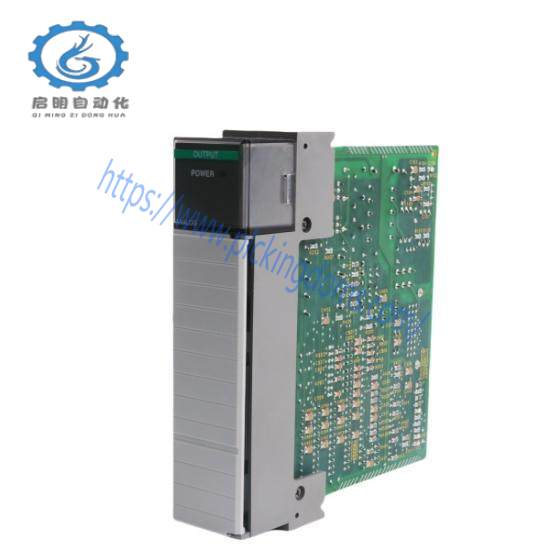

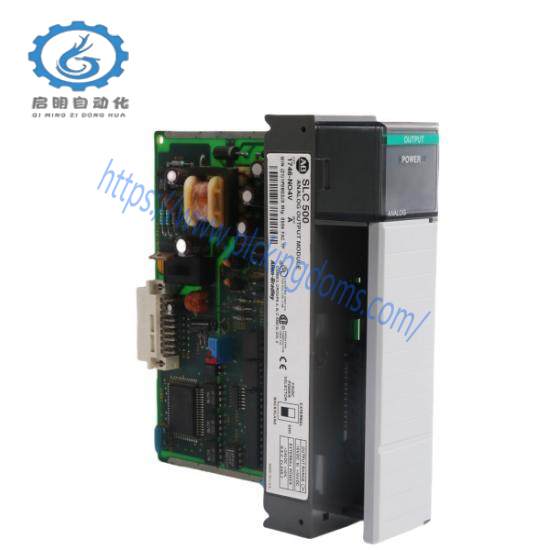

The AB 1746-NO4V Analog Input Module is designed to meet the stringent requirements of industrial automation, offering unparalleled precision in voltage measurement.
With a wide input range of -10 to 10 VDC, coupled with a low signal-to-noise ratio, this module ensures reliable data acquisition even under fluctuating conditions.
Engineered with advanced backplane and enclosure isolation technology, the 1746-NO4V guarantees robust protection against electrical interference, ensuring system stability and reliability.
This module supports a variety of applications across different industries, from manufacturing and process control to HVAC systems, where accurate sensor data is critical for optimal performance.
Easy to integrate into existing control systems, the 1746-NO4V simplifies installation and maintenance, reducing downtime and enhancing operational efficiency.
