AB 1769-OV16: 16 Point 24 Vdc Sinking Output Module – Advanced Control Solution

In stock

The AB 1769-OV16 is a high-performance, 16-point 24 VDC sinking output module designed for seamless integration into industrial control systems, offering precise control over actuators and devices in a wide range of manufacturing environments.

Product Type:Output Module

Model Number:1769-OV16

Series:AB 1769

No. of Outputs:16

Operating Voltage:24 VDC

Output Configuration:Sinking

Max Load Current:500 mA per channel

Switching Frequency:Up to 20 kHz

Relay Rating:120 Vac/24 Vdc

Insulation Resistance:1000 MΩ

Operating Temperature:-20°C to +60°C

Storage Temperature:-40°C to +70°C

Dimensions (WxHxD):48.2 x 91.4 x 91.4 mm

Weight:0.25 kg

    The AB 1769-OV16 is specifically engineered to deliver exceptional performance in industrial automation environments. Its 16-point configuration offers versatility, enabling it to manage a wide range of outputs efficiently.

    Featuring a 24 VDC sinking output, this module ensures compatibility with various industrial devices requiring low voltage control signals. Each channel is rated at 50 mA, providing sufficient current to drive loads effectively without overheating or compromising system stability.

    Designed with durability in mind, the AB 1769-OV16 operates within a broad temperature range (-40°C to +70°C), making it suitable for use in extreme environments. Its IP20 enclosure protects against dust and light splashes, enhancing reliability in harsh conditions.

    Integrated with a ControlNet communication interface, the module seamlessly connects with other components in an industrial network, facilitating data exchange and control across the entire system. This feature supports real-time monitoring and control, optimizing productivity and efficiency.

    With dimensions of 72 mm x 90 mm x 110 mm and weighing just 0.2 kg, the AB 1769-OV16 is compact and lightweight, ideal for space-constrained installations. Its panel mounting design allows for easy integration into existing control panels, minimizing setup time and complexity.

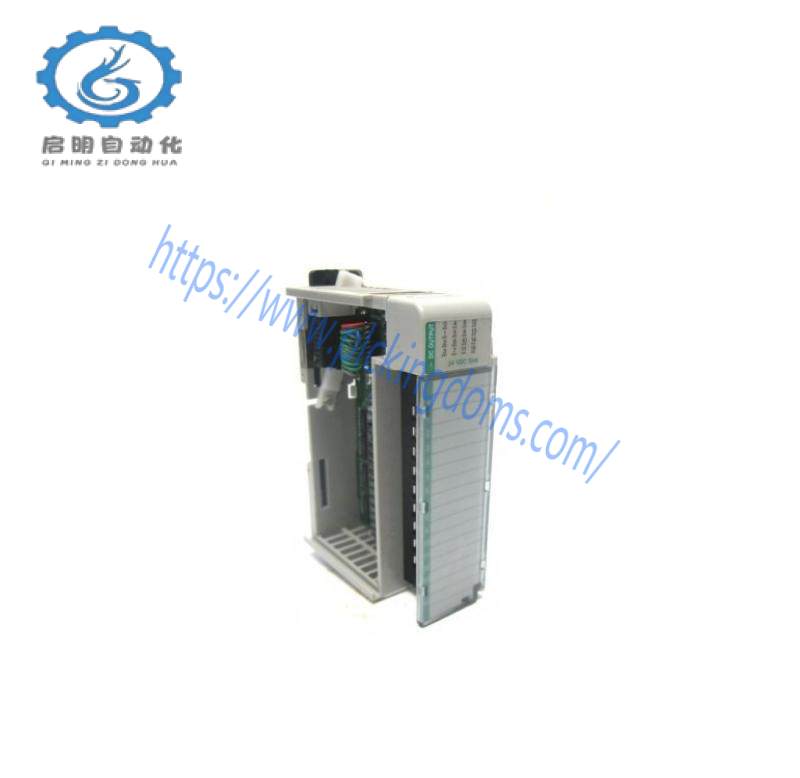

AB 1769-OV16 16 point 24 vdc sinking output module
