Operating Voltage:24 VDC
Input Current:2.0 A
Output Current:4.0 A
Frequency Response:0-20 kHz
Control Protocol:CANopen
Communication Speed:1 Mbit/s
Power Supply:Wide Range (85-264 Vac)
Protection Class:IP20
Dimensions (LxWxH):145 x 84 x 30 mm
Weight:0.4 kg

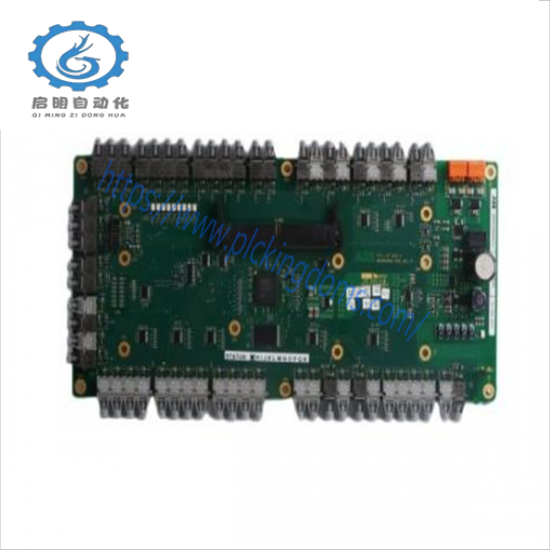

The ABB 3BHE027867R0101 Gate Drive Board is engineered to deliver exceptional performance and reliability in a wide range of industrial settings. It is meticulously designed to enhance the efficiency and responsiveness of motor control systems, making it an ideal choice for applications requiring precise voltage and current control.
This board features advanced semiconductor technology, enabling it to handle high current loads with minimal power loss. Its robust construction and efficient cooling system ensure stable operation even under demanding conditions, extending the lifespan of the equipment it powers.
Key design highlights include a compact footprint and SMT components for enhanced durability and ease of integration into existing systems. The board supports both single-phase and three-phase systems, providing versatility across various industrial applications.
The ABB 3BHE027867R0101 Gate Drive Board incorporates state-of-the-art diagnostic features, allowing for real-time monitoring and troubleshooting of operational parameters. This ensures quick identification and resolution of issues, minimizing downtime and maintenance costs.
With its compatibility with ABB‘s comprehensive range of motors and drives, this gate drive board seamlessly integrates into existing automation solutions, offering seamless upgrade paths and future-proofing capabilities. It is backed by ABB‘s global support network, providing users with access to expert advice and comprehensive documentation for easy installation and operation.
