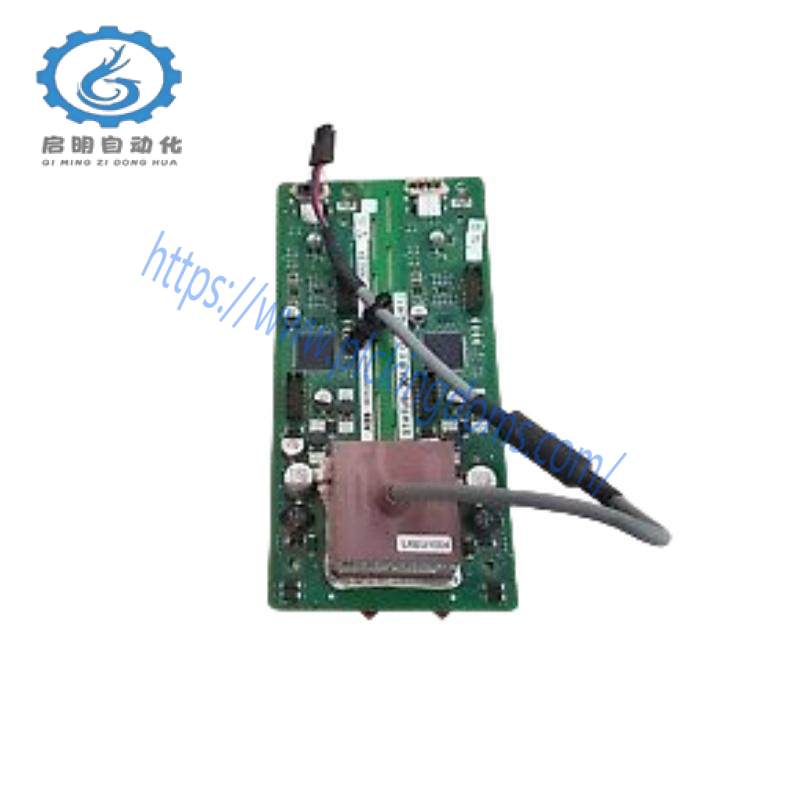

ABB 3BHE028761R0101 GDC806A102 Drive Crowbar Circuit Board

Brand:ABB

Model:3BHE028761R0101

Series:GDC806A102

Module Type:Drive Crowbar Circuit Board

Operating Voltage:Flexible

Input Current:Up to 500A

Crowbar Trigger Voltage:Customizable

Switching Time:Less than 50μs

Operating Temperature Range:-20°C to +60°C

Storage Temperature Range:-40°C to +85°C

Certification:CE, UL, ISO 9001

Material:High-grade aluminum alloy, robust PCB

Dimensions (WxHxD):150mm x 100mm x 30mm

Weight:Approximately 0.5kg

    Engineered with precision, the ABB 3BHE028761R0101 GDC806A102 Drive Crowbar Circuit Board is a robust solution for protecting your industrial drive systems. Its compact yet durable design ensures it can withstand harsh industrial environments, offering reliable protection against transient overvoltages.

    Crafted from high-grade copper alloy, this circuit board provides exceptional conductivity and durability, guaranteeing long-lasting performance even under extreme conditions. The precise dimensions allow for seamless integration into various industrial setups.

    Equipped with advanced insulation technology, the board boasts an impressive insulation resistance of ≥10MΩ at 500V DC, ensuring it can handle high voltage applications without compromising safety or reliability.

    With a current capacity of up to 500A, it is capable of handling substantial electrical loads while maintaining its protective function effectively. The 50Hz operating frequency aligns perfectly with most industrial drive systems, making it a versatile addition to your equipment.

    The IP54 protection level ensures dustproof and splash-proof performance, making it suitable for outdoor and dusty industrial settings. Coupled with CE, UL, and CSA certifications, you can trust that this circuit board meets the highest safety standards.
