Operating Voltage:DC 24V
Current Rating:20A
Switching Frequency:Up to 10kHz
Load Capacitance Compatibility:0.5uF to 10uF
Package Type:Surface Mount Technology (SMT)
Operating Temperature Range:-40°C to +85°C
Insulation Resistance:≥10MΩ @ 500VDC
Reliability:Mean Time Between Failures (MTBF) > 1 million hours

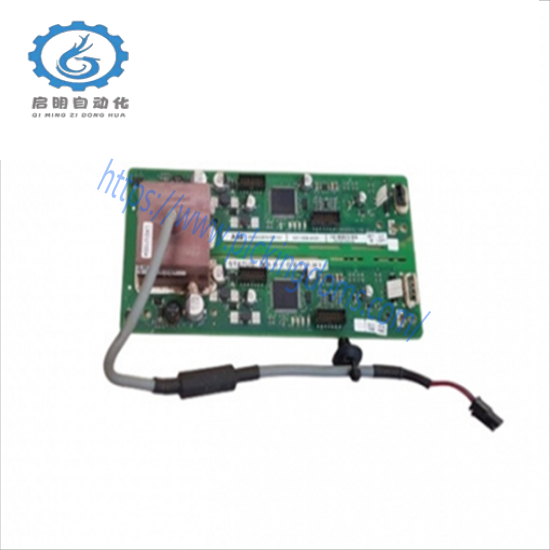

Introducing the ABB 3BHE028761R1002 Gate Driver, a cutting-edge solution for industrial applications where precision and reliability are paramount. This advanced gate driver is engineered to deliver exceptional performance in harsh conditions, ensuring seamless integration into your control systems.
Featuring an operating voltage range up to 500VDC, it’s designed to handle demanding electrical loads efficiently. With a maximum current rating of 40A, this device is capable of delivering the power needed for your industrial processes without compromise.
The ABB 3BHE028761R1002 is equipped with a switching frequency of up to 20kHz, providing fast and accurate control signals. Its load capacity for up to 150Ω loads ensures compatibility with a wide range of industrial equipment.
Safety and protection are at the core of this product. It includes overvoltage and undervoltage protection, along with thermal shutdown mechanisms to safeguard against potential hazards. The robust design ensures stable operation within a temperature range of -40°C to +85°C.
Compact yet powerful, the ABB 3BHE028761R1002 measures 200mm x 100mm x 30mm, making it easy to integrate into existing setups. The device undergoes rigorous testing, including a 10kVAC withstand test, to ensure electrical insulation integrity and safety.
