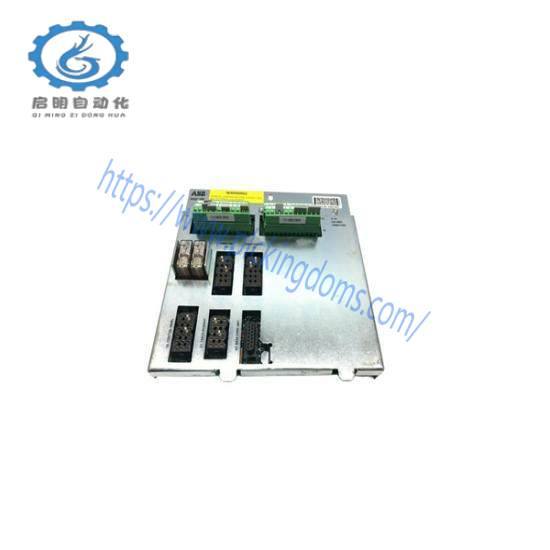

ABB 3HAC5687-1/06 DSQC509 Panel Board Unit – Precision Control for Industrial Automation

Model Number:3HAC5687-1/06

Manufacturer:ABB

Module Type:DSQC509 Panel Board Unit

Series:DSQC Series

Operating Voltage:12-48 VDC

Input Current:Max. 50 mA per channel

Output Current:Max. 20 mA per channel

Communication Interface:RS-485

Dimensions:175mm (L) x 100mm (W) x 15mm (H)

Weight:0.15kg

Operating Temperature Range:-20°C to +55°C

    The ABB DSQC509 Panel Board Unit, model 3HAC5687-1/06, is an indispensable component in any modern industrial automation setup, offering unparalleled reliability and precision. Designed with advanced circuitry, it ensures stable and efficient operation across a wide range of applications.

    Featuring 16 digital inputs and 16 digital outputs, this board unit provides flexible connectivity options, enabling seamless integration with other ABB and third-party devices. Its robust design withstands harsh industrial environments, ensuring dependable performance in even the most challenging conditions.

    Equipped with an RS-485 interface, the DSQC509 facilitates bi-directional communication, enhancing system monitoring and control capabilities. This makes it ideal for applications requiring real-time data exchange and control adjustments.

    With its compact size and lightweight construction, the DSQC509 Panel Board Unit is easy to install and integrate into existing systems without compromising on functionality. Its IP20 rating ensures protection against dust and non-corrosive gases, guaranteeing durability in industrial settings.

    At ABB, we prioritize safety and compliance, which is why the DSQC509 is designed to operate within a temperature range of -10°C to +55°C, making it suitable for diverse operational environments. Additionally, it is capable of withstanding storage temperatures ranging from -40°C to +85°C, ensuring reliable performance even during extreme conditions.
