ABB 5SHX 1000H0003 IGBT Module – Advanced Power Electronics for Industrial Automation

In stock

The ABB 5SHX 1000H0003 IGBT Module is an advanced industrial control solution designed for high-performance applications in power electronics, ensuring efficient energy management and reliability in demanding environments.

Product Type:IGBT Module

Model Number:5SHX 1000H0003

Manufacturer:ABB

Dimension (WxHxD):145mm x 145mm x 70mm

Operating Temperature Range:-40°C to +125°C

Input Voltage:350V DC

Output Current:1000A

Peak Output Current:1500A

Max Gate Voltage:25V

Insulation Resistance:≥10MΩ @ 500V DC

Operating Frequency:up to 6 kHz

Cooling Method:Air Cooled

    The ABB 5SHX 1000H0003 IGBT Module is designed to deliver unparalleled performance in high-power applications, offering exceptional reliability and efficiency in modern industrial settings.

    This module is built with state-of-the-art semiconductor technology, providing superior switching capabilities that are essential for achieving optimal power utilization in automated manufacturing lines.

    With an operating temperature range from -40°C to +125°C, it is engineered to withstand harsh industrial environments, ensuring continuous operation under varying conditions.

    Featuring a high current capability, the module can handle continuous currents up to 800A and peak currents up to 1200A, making it suitable for demanding applications where power surge is expected.

    The inclusion of an efficient air-cooling system ensures optimal heat dissipation, prolonging the life of the module and reducing maintenance requirements. Its IP20 protection level guarantees basic splash resistance, enhancing its durability in industrial environments.

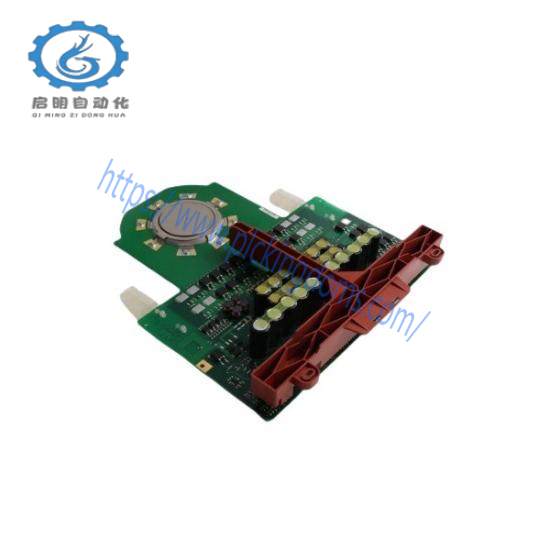

ABB 5SHX 1000H0003  IGBT Module
