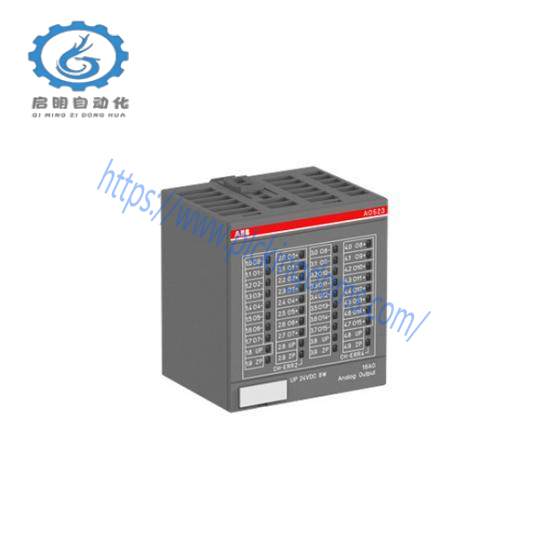

ABB AO523 – Advanced Analog Output Module, Designed for Industrial Control Solutions

Brand:ABB

Model:AO523

Type:Analog Output Module

Application Compatibility:Industrial Control Systems

Operating Voltage Range:12 to 24V DC

Current Capacity:0 to 20mA

Communication Protocol:Modbus RTU

Mounting:Panel-Mountable

Environment Temperature:-25°C to +60°C

Humidity Range:5% to 95% RH (non-condensing)

    The ABB AO523 Analog Output Module stands out in its class by offering unparalleled ease-of-use and cost-effectiveness, making it an ideal choice for industrial automation projects. With its robust design and advanced features, it ensures consistent performance under various operational conditions.

    Engineered for compatibility with ABB PLC’s, this module seamlessly integrates into existing systems, providing precise analog output signals essential for controlling actuators, sensors, and other devices with high accuracy.

    Featuring a wide operating temperature range of -20°C to +55°C, the AO523 is designed to withstand harsh industrial environments, ensuring reliability in diverse applications.

    Efficient power consumption and a low current draw make it an economical solution for power-sensitive systems, reducing overall energy costs without compromising on performance.

    The AO523 supports both 0-20mA and 4-20mA current loops, providing flexibility in signal transmission standards. Its high accuracy (+/- 0.5%) ensures precise control over processes requiring fine adjustments.

    With a response time of less than 5ms, the module guarantees swift signal changes, enhancing system responsiveness and efficiency.

    For installation, the AO523 offers a DIN rail mounting option, simplifying the process and ensuring secure placement within control cabinets.

    This module comes equipped with an IP20 enclosure rating, providing basic protection against dust and splashes, ideal for industrial settings where moderate environmental hazards are expected.

    The compact dimensions of 96mm x 96mm x 44mm and lightweight design (approximately 120g) make it easy to integrate into space-constrained panels without adding unnecessary bulk or weight.
