Product Type:IGBT Module SP Kit
Brand:ABB
Model Number:FS450R17KE3/AGDR-81C
Operating Voltage:Up to 1700V DC
Maximum Continuous Current:81A
Peak Current Rating:120A
Frequency Range:50Hz to 60Hz
Package Type:SMT (Surface Mount Technology)
Cooling Method:Thermal Interface Material (TIM) and Forced Air Cooling
Insulation Resistance:≥ 10^9 ohm at 500V DC
Environmental Conditions:Operating Temperature: -40°C to +125°C, Storage Temperature: -55°C to +150°C
Dimensions (W x H x L):105mm x 127mm x 132mm
Weight:Approximately 0.5kg
Certifications:UL, CE, IEC

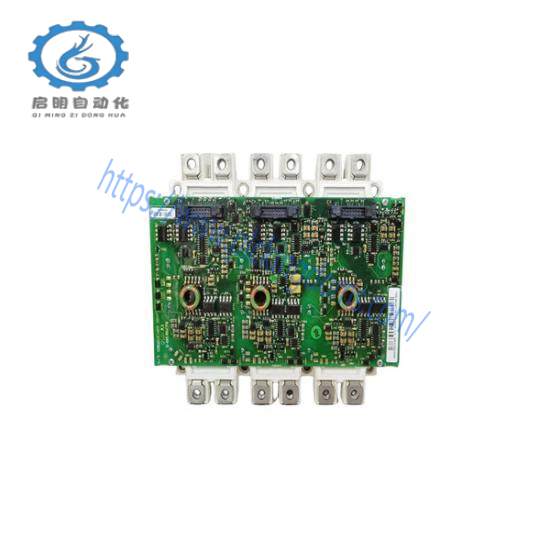

The ABB FS450R17KE3/AGDR-81C IGBT Module SP KIT stands out for its robust design and advanced functionality, making it ideal for use in demanding industrial environments. Its compact size and modular design facilitate easy integration into various control systems, enhancing system flexibility and performance.
Engineered with state-of-the-art technology, this module boasts superior switching characteristics, ensuring smooth operation and minimizing energy losses. The high-grade aluminum alloy material provides excellent thermal conductivity and mechanical strength, ensuring longevity and reliability under heavy-duty conditions.
Featuring an efficient air cooling system, the module maintains optimal operating temperatures, even during prolonged high-load operations. This ensures consistent performance and reduces the risk of overheating, contributing to a longer service life.
With its wide operating temperature range (-40°C to +125°C), this IGBT Module SP KIT can withstand extreme environmental conditions, making it suitable for applications in various geographical locations. The class H insulation offers enhanced electrical safety and reliability, ensuring protection against high voltage spikes.
For ease of use and maintenance, the digital logic level control interface allows for seamless connection and control through modern automation systems. This compatibility ensures a streamlined integration process and simplifies system management.
