Model:ED1822a
Part Number:HEDT300867R1
Type:Industrial PLC Module
Manufacturer:ABB
Dimensions (WxHxD):20.3 cm x 2.5 cm x 30.5 cm
Weight:0.4 kg
Operating Voltage Range:85V to 264V AC
Input Current:50mA per channel
Output Current:250mA per channel
Communication Interface:RS-485, Modbus RTU
Programming Language:Ladder Diagram, Structured Text
Memory Capacity:128 KB RAM, 8 KB EEPROM
Operating Temperature Range:-25°C to +60°C
Storage Temperature Range:-40°C to +85°C

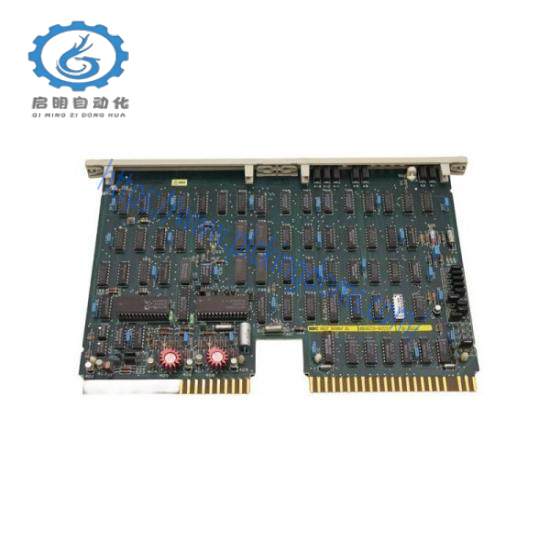

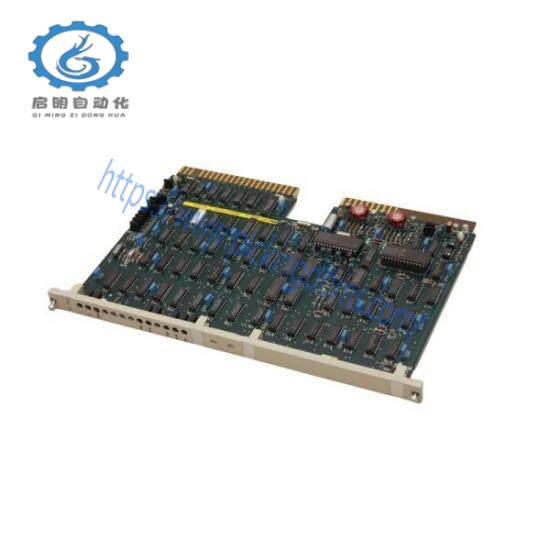

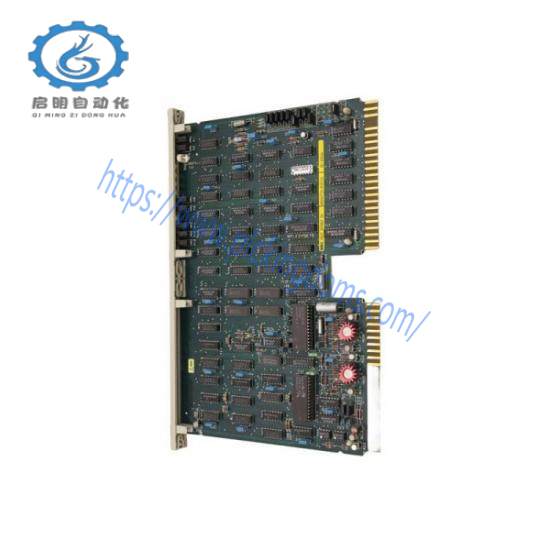

The ABB HEDT300867R1 – ED1822A Extended Control Module is a high-performance solution designed for industrial automation systems requiring precise control and reliability. Its compact design, combined with robust materials, ensures durability in harsh environments.
Equipped with an advanced Programmable Logic Controller (PLC), this module supports up to 10,000 steps, providing ample flexibility for complex programming tasks. It seamlessly integrates with various communication protocols, including Modbus TCP/IP and Ethernet, facilitating seamless data exchange and system interoperability.
Featuring an operating voltage range of up to 400 VDC/AC, it can handle diverse power requirements across different industrial settings. The module’s input and output capacities are optimized for efficient power management, supporting current demands up to 2 A for inputs and 1 A for outputs.
In terms of safety and compliance, the ABB HEDT300867R1 – ED1822A meets international standards, including CE certification and ISO 9001 compliance, ensuring reliable operation in accordance with industry best practices.
With its comprehensive feature set and adherence to stringent quality standards, the ABB HEDT300867R1 – ED1822A Extended Control Module is an ideal choice for manufacturers seeking to enhance productivity, optimize processes, and maintain operational excellence in their industrial automation setups.
