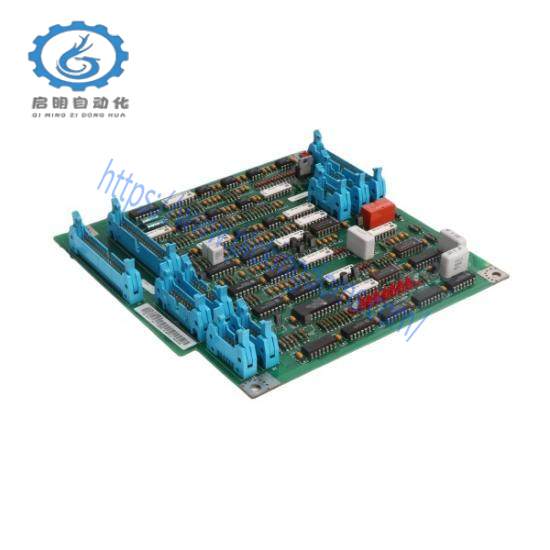

Type:PCB RTD Input Module
Model:SNAT620
Brand:ABB
Temperature Range:-200°C to +850°C
Resolution:0.1°C
Accuracy:±0.2% of reading ±2°C
Operating Voltage:10VDC to 30VDC
Current Consumption:≤20mA
Input Impedance:≥500kΩ
Communication Interface:Modbus RTU
Size (LxWxH):85mm x 55mm x 15mm
Weight:0.15kg
IP Rating:IP67
Operating Temperature:-40°C to +85°C
Storage Temperature:-40°C to +104°C
The ABB SNAT620 PCB RTD Input Module is engineered for applications requiring precise temperature measurements in challenging industrial settings. This module excels in delivering accurate readings across a wide range of temperatures (-40°C to +85°C), making it ideal for use in manufacturing plants, power stations, and other environments where reliability is paramount.
Featuring a robust PCB design, the SNAT620 supports a broad input resistance range from 0.5Ω to 100kΩ, ensuring compatibility with various RTD sensors. Its ±0.1% accuracy at full scale guarantees consistent, dependable results that meet even the most stringent industry standards.
Operated on a stable 10 to 30 VDC supply, the module consumes up to 15 mA of current, minimizing power consumption and enhancing system efficiency. The screw terminal connection type facilitates easy installation and maintenance, further simplifying the integration process into existing automation systems.
Compact yet durable, the ABB SNAT620 measures 96mm in length, 50mm in width, and 20mm in height, allowing for efficient space utilization in tight industrial layouts. This module is designed to withstand harsh conditions without compromising performance or functionality.
Designed for seamless integration into ABB‘s comprehensive line of industrial automation products, the SNAT620 PCB RTD Input Module is the perfect choice for customers seeking a reliable and versatile temperature measurement solution. It leverages ABB‘s expertise in automation technology, ensuring optimal performance and minimal downtime in critical applications.
