Model Type:Analog Combination Module
Number of Channels:2 (Input), 2 (Output)
Input Type:High Resolution
Common Mode Voltage Range (Input):-20 To 20 V
Absolute Input Voltage (Input):Plus/Minus 7.5 VDC Or 7.5 VAC RMS (Maximum)
Input Range (Current):-20 To 20 MA
Absolute Input Current (Maximum):-30 To 30 MA
Output Range (Voltage):-10 To 10 V – 1 LSB
Voltage Rating:Overvoltage Protection: 7.5 VAC RMS
Input Range (Voltage):-10 To 10 VDC – 1 LSB
Current Rating:Backplane Current Draw: 55 MA
Isolation:Backplane: 500 VDC
Enclosure Type:Open Type
Display:Status LED
Connection Cables:24 – 14 AWG
Mounting:Chassis

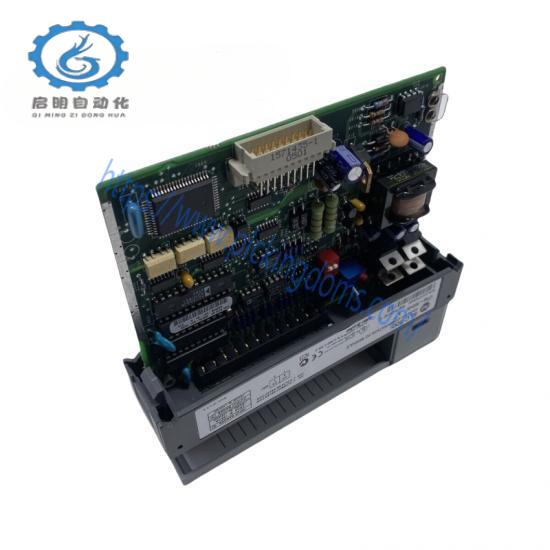

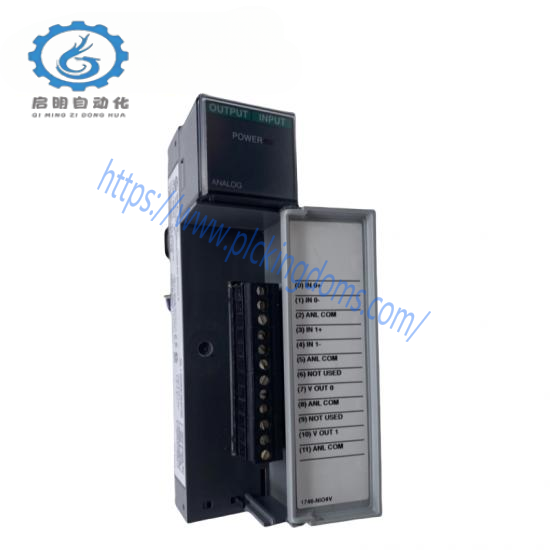

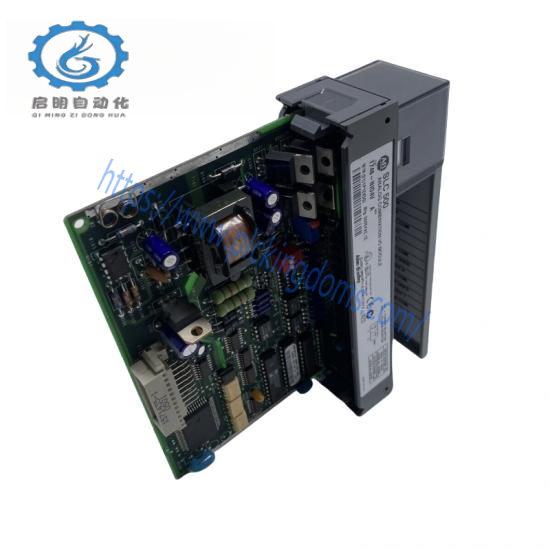

The Allen Bradley 1746-NIO4V SLC 500 Analog Module is designed with high-resolution capabilities, ensuring exceptional accuracy in signal processing for critical industrial applications.
With a versatile input range of -20 to 20 MA and an absolute current rating of -30 to 30 MA, this module caters to a wide array of industrial requirements, from temperature monitoring to flow control.
Offering a dual output capacity, the module provides a precise voltage range of -10 to 10 V with a resolution of 1 LSB, making it ideal for applications demanding fine-tuned voltage adjustments.
Equipped with robust overvoltage protection, the module ensures operational safety under varying electrical conditions, safeguarding against potential damage caused by excessive voltage fluctuations.
Featuring a backplane current draw of 55 MA, the Allen Bradley 1746-NIO4V is designed for efficient power management, reducing energy consumption and enhancing system performance.
An open-type enclosure design facilitates easy integration and maintenance, allowing seamless installation within diverse industrial settings without compromising on accessibility.
