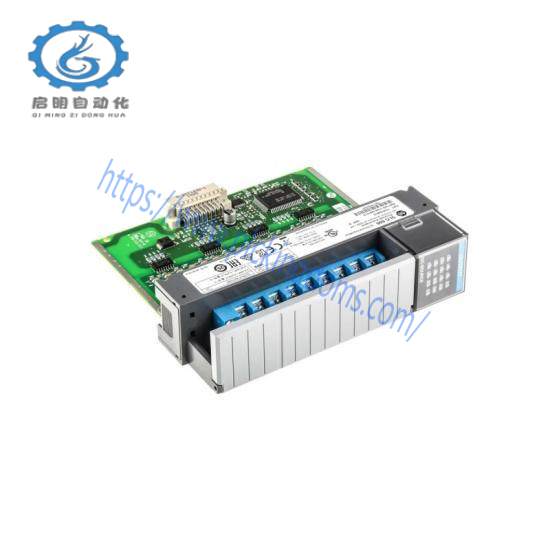

Allen Bradley 1746OB16 Digital DC Output Module

In stock

The Allen Bradley 1746OB16 is a high-performance digital DC output module designed for industrial automation systems. It provides reliable control over 16 channels, supporting voltage levels from 10 to 50VDC, making it suitable for a wide range of applications requiring precise control and robust performance.

Model Type:SLC500

Model Number:1746-OB16

Number of Channels:16

Input Voltage:24 VDC

Output Voltage Range:10 – 50 VDC

On-State Voltage Drop:1.2 V

Off-State Output Leakage:1 MA

Load Capacity:1 MA

Current Rating:Backplane: 0.28 A | Continuous Current Per Output: 0.25 A @ 60 DEG C | Continuous Current Per Module: 4 A @ 60 DEG C

Isolation:Communication Circuits: 500 VDC | Backplane: 1500 VAC

Processor:SLC 500

Enclosure:Open Type

Mounting:Chassis

Temperature Rating:0 – 60 DEG C

Environmental Conditions:5 – 95% Relative Humidity

Unleash the power of precision control with the Allen Bradley 1746OB16 Digital DC Output Module. This state-of-the-art component is meticulously engineered for applications demanding reliable and accurate output delivery. With its robust design, it ensures efficient operation across a wide range of industrial settings.

Featuring 16 digital sinking output channels, this module provides unparalleled flexibility in managing multiple processes simultaneously. Its versatile voltage and current control capabilities allow for seamless integration into various automation systems, enhancing operational efficiency and productivity.

Equipped with advanced isolation technology, the 1746OB16 ensures reliable communication and power supply isolation, safeguarding against electrical interference and ensuring uninterrupted performance. The open-type enclosure design facilitates easy installation and maintenance, making it suitable for both new installations and retrofit scenarios.

Withstanding temperatures from 0 to 60°C and operating under humidity conditions ranging from 5% to 95% RH, this module is built to endure harsh industrial environments. It is the perfect choice for applications where reliability and durability are paramount.

Experience the synergy of cutting-edge technology and industrial expertise with the Allen Bradley 1746OB16. Whether you’re automating production lines or integrating complex control systems, this module delivers superior performance, ensuring your operations run smoothly and efficiently.

1746-OB16 1746OB16
