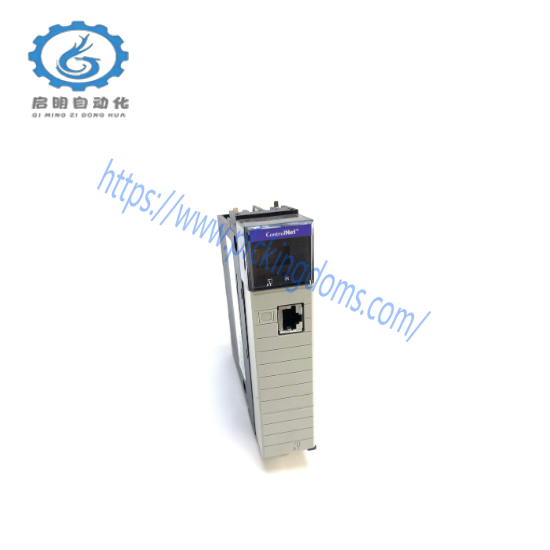

Allen Bradley 1756-CN2/C High Capacity IP Bridge Module

Model Type:Communication Bridge Module

Manufacturer:Allen-Bradley

Model Number:1756-CN2/C

Amperage Rating:Drawn: 400 MA At 5.1 V

Mounting:Chassis

Communication Protocol:DeviceNet

Enclosure:Open Type

Rfi Suppression:Radiated: 10 V/M With 1 KHZ Sine-Wave 80% AM From 80 – 2000 MHZ

Temperature Rating:0 – 60 DEG C

Power Dissipation:5.1 W

Isolation:30 V Continuous

Environmental Conditions:5 – 95% Non-Condensing Relative Humidity

Vibration:2 G

Shock:30 G

Interface:Ethernet

USB Port:Available

Communication Speed:10/100 MBPS

    The Allen-Bradley 1756-CN2/C High Capacity IP Module is engineered to optimize communication efficiency in industrial automation environments. Its high-speed Ethernet/IP interface ensures fast and reliable data transfer, making it ideal for applications requiring extensive network connectivity.

    Equipped with an open type enclosure, this module ensures compatibility with a wide range of industrial settings, enhancing its adaptability across various manufacturing and process control scenarios.

    Featuring a power supply of 3 mA at 24 VDC, it is designed to operate within a broad temperature range of 0°C to 60°C, ensuring reliable performance under diverse environmental conditions.

    The 1756-CN2/C module is characterized by its high power dissipation capability of 5.1 W, combined with a continuous isolation level of 30 V, which safeguards against electrical interference, maintaining stable operation in noisy environments.

    Adhering to strict environmental standards, this module can withstand up to 95% non-condensing relative humidity without affecting its functionality. It also meets vibration and shock resistance criteria, ensuring durability in harsh industrial conditions.
