Model Type:Bridge Module
Model Number:1756-EN2T/C
Manufacturer:Allen Bradley
Communication Protocol:Ethernet/IP Bridge
Enclosure:Open Type
Connection Cables:802.3 Compliant Shielded or Unshielded Twisted Pair
Temperature Rating:0 – 60 DEG C
Power Dissipation:5.1 W
Isolation:30 V Continuous
Environmental Conditions:5 – 95% Non-Condensing Relative Humidity
Vibration Resistance:2 G
Shock Resistance:30 G
Interface:Ethernet

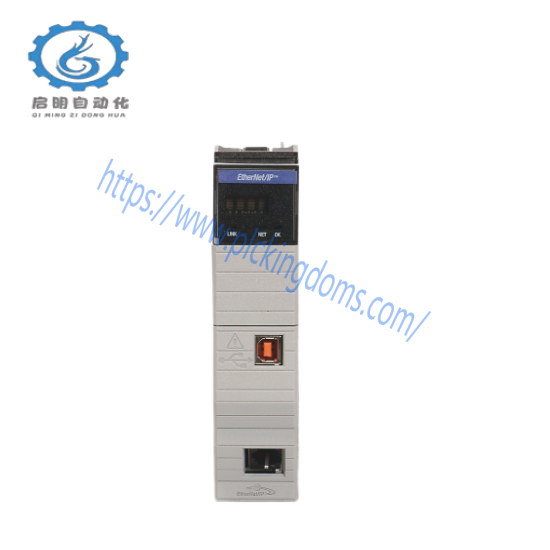

The Allen Bradley 1756-EN2T/C ControlLogix Bridge Module is engineered to facilitate robust and reliable communication within complex industrial automation systems. Its compatibility with the Ethernet/IP protocol ensures seamless connectivity with a wide range of ControlLogix devices, enhancing system interoperability.
Equipped with a single port, this module supports up to 8 motion axes, making it ideal for applications requiring precise control over motors or robotic systems. With a total of 128 TCP/IP connections and 256 CIP connections, it ensures ample capacity for data transfer and communication, supporting multiple devices simultaneously.
The RJ45 copper connector provides a durable and efficient means of connection, ensuring stable communication across the network. The 220V power supply meets industrial standards, ensuring the module can operate reliably in various environments.
Designed with a 7-slot Control Log IX configuration, this module integrates seamlessly into existing ControlLogix systems, minimizing installation time and complexity. Its compliance with certification standards guarantees its reliability and safety in industrial settings.
The Allen Bradley 1756-EN2T/C ControlLogix Bridge Module offers enhanced productivity by streamlining data exchange between different components of a control system. Its advanced features and high-performance specifications make it an indispensable tool for achieving optimal system performance in modern industrial environments.
