Manufacturer:Allen-Bradley
Model:1756SC-IF8U
Type:ControlLogix Analog Input Module
Quantity of Input Channels:8
Input Range:-10VDC to +10VDC or 0VDC to +24VDC
Accuracy:+/- 0.5% Full Scale
Sampling Rate:Up to 1000 samples per second
Communication Protocols:[“ControlNet”,”EtherNet/IP”]
Power Consumption:Max 6.2 Watts
Operating Temperature:-20°C to +60°C
Dimensions:1.00 lbs (Approx. 0.45 kg)
Connector Type:36-pin
Configuration:Supports HART Communication

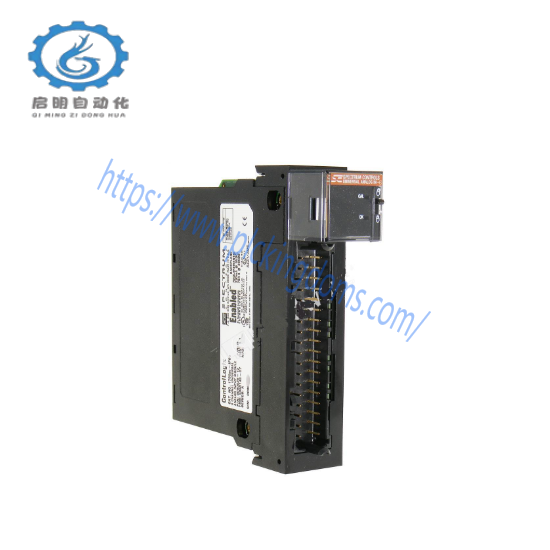

The 1756SC-IF8U ControlLogix Analog Input Module is designed for industries requiring precise and real-time data acquisition. Its robust construction ensures reliable performance under harsh environmental conditions.
Each of the eight analog inputs is equipped with a wide range of measurement capabilities, supporting both current (4-20 mA) and voltage (0-10 V) inputs, making it versatile for a variety of industrial applications.
Equipped with advanced signal conditioning circuits, this module offers excellent noise immunity and ensures accurate readings even in noisy environments. Its integration with ControlNet allows seamless communication within the ControlLogix system for enhanced system efficiency.
Designed for ease of installation and maintenance, the 1756SC-IF8U is compatible with standard panel mounting hardware, facilitating quick setup and minimizing downtime.
Manufactured with high-quality materials, this module withstands extreme temperatures ranging from -20°C to +70°C, ensuring continuous operation in challenging industrial settings. Its IP20 enclosure rating provides protection against dust and splashes of water, further enhancing its durability.
