Input Voltage (AC):100-240VAC RMS, Single Phase
Nominal Input Current (AC):18 Amps
Input Frequency (AC):47-63 Hz
Output Voltage (AC):100-240VAC
Output Frequency Range:0-400 Hz
Continuous Output Power:1 kW
Continuous Output Current:1 A
Intermittent Output Current:30 A
Dimensions:7.8 x 5.68 x 3.89 in (198.12 x 144.27 x 98.1 mm)
Weight:Not specified in documentation
Operating Temperature Range:0-55 °C (32-131 °F)
Storage Temperature Range:-40-70 °C (-40-158 °F)
Relative Humidity Range:5-95%, without condensation
Operating Shock:15 g (3 pulses, 11 ms)
Non-operating Shock:30 g (3 pulses, 11 ms)
Vibration Resistance:Can maintain optimum functionality at 2.5 g vibration

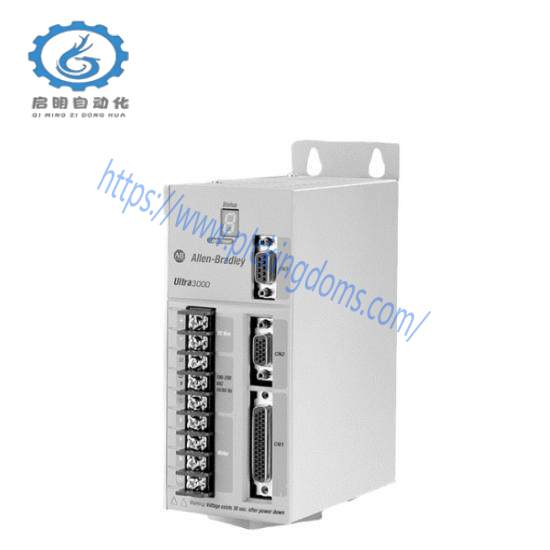

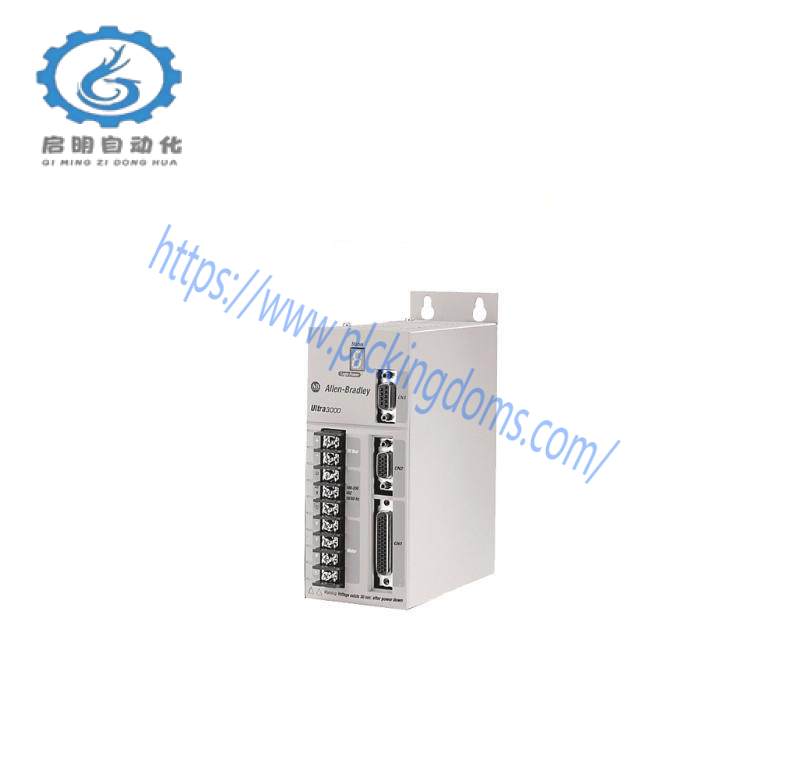

The Allen-Bradley 2098-DSD-020X is a standard drive from the Ultra 3000 Digital Servo Drive family, offering advanced motion control solutions for various industrial applications. It is ideal for applications requiring precise indexing and preconfigured drive motions.
Designed with robust performance parameters, this servo drive supports a wide input voltage range of 100-240VAC rms, 1-Phase, with a maximum input current of 18 Amps. Its operational efficiency is further enhanced by its ability to handle frequencies between 47-63 Hz.
This drive module is compact yet powerful, measuring 7.8 x 5.68 x 3.89 inches, making it easy to integrate into existing systems. Its dimensions are 198.12 x 144.27 x 98.1 mm, ensuring seamless installation and maintenance.
The 2098-DSD-020X is equipped with advanced features for precise motion control, including a continuous output power of 1kW and intermittent output currents up to 30A. This ensures reliable operation even under demanding industrial conditions.
Designed for durability, the drive operates within a temperature range of 0-55 °C (32-131 °F) and can store in temperatures ranging from -40-70 °C (-40-158 °F). The module is resistant to humidity fluctuations and can withstand shocks and vibrations, making it a reliable choice for harsh industrial environments.
