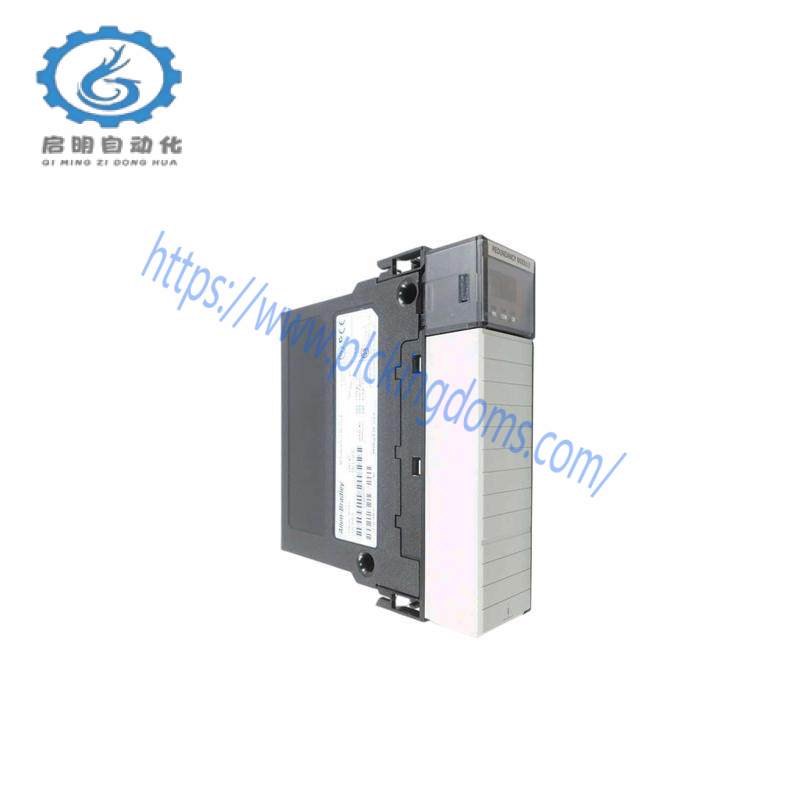

Allen-Bradley AB 1756-RM/B ControlLogix Enhanced Redundancy Module

Model Type:ControlLogix Enhanced Redundancy Module

Model Number:1756-RM/B

Manufacturer:Allen-Bradley

Number Of Channels:2

Current Rating:Drawn: 1.16 A At 5.1 VDC, 3.4 MA At 24 VDC

Enclosure:Open Type

RFI Suppression:Radiated: 10 V/M With 1 KHZ Sine-Wave 80% AM From 80 – 2000 MHZ, 10 V/M With 200 Hz 50% Pulse 100% AM At 900 MHZ, 10 V/M With 200 Hz 50% Pulse 100% AM At 1890 MHZ, 3 V/M With 1 KHZ Sine-Wave 80% AM From 2000 – 2700 MHZ

Display:4 Character Alpha/Numeric

Mounting:Chassis

Temperature Rating:32 – 140 DEG F

Power Supply:3 MA At 24 VDC

Communication Speed:Not specified

Communication Protocol:Not specified

Isolation:30 V Continuous

Environmental Conditions:5 – 95% Non-Condensing Relative Humidity

Vibration:2 G

Shock:30 G

Interface:Ethernet, USB Port

    This Allen-Bradley AB 1756-RM/B ControlLogix Enhanced Redundancy Module is designed for mission-critical applications where downtime can be costly. Its redundant communication capabilities ensure uninterrupted operation and high reliability, making it an ideal choice for complex industrial environments.

    Featuring an open-type enclosure, this module is versatile and can be mounted directly on the chassis for efficient installation. The robust design withstands demanding environmental conditions, ensuring stable performance under various temperature and humidity levels.

    With support for Ethernet/IP protocols, the module seamlessly integrates into modern control systems, providing seamless communication and data transfer. Its high-speed 10/100 Mbps interface ensures efficient data processing and transmission.

    Equipped with advanced RF interference suppression technology, the AB 1756-RM/B ensures reliable performance even in environments with high electromagnetic interference. This feature minimizes disruptions caused by external signals, safeguarding the integrity of the control system.

    The inclusion of a 4-character alpha-numeric display allows for quick status checks without the need for additional interfaces. This feature, combined with its straightforward mounting and easy integration, makes the Allen-Bradley AB 1756-RM/B a user-friendly solution for technicians and engineers alike.
