Product Type:Other
Product ID:7CM211.7
B&R Type Designation:Other
Combination Module:Yes
Inputs:8
Power Supply Voltage:24 VDC
Response Time:4 ms
Sink Function:Enabled
Counters:Up to 3 one-channel or 2 two-channel
Incremental Encoders:2
Maximum Frequency:20 kHz
Transistor Outputs:8
Power Supply Voltage (Outputs):24 VDC
Current Rating (Outputs):0.5 A
Comparator Function:Yes
Short Circuit Protection:Included
Analog Inputs:2, ±10 V / 0 to 20 mA
Resolution:12-bit
Analog Outputs:2, ±10 V
Resolution (Analog Outputs):12-bit
Terminal Blocks:TB718 required for analog I/O

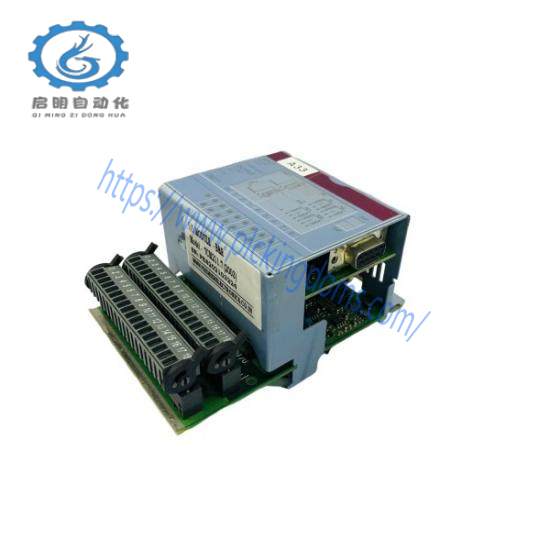

The B&R 7CM211.7 Output Module is engineered to deliver exceptional performance in industrial automation environments, offering a robust solution for both input and output control tasks.
Featuring 8 digital inputs compatible with 24V DC, this module ensures precise signal detection with a quick response time of 4 milliseconds, enhancing system responsiveness and reliability.
With the capability to support up to three single-channel or two dual-channel counters, or two incremental encoders operating at 20 kHz, it caters to a wide range of monitoring and control requirements.
Equipped with 8 transistor outputs, each rated for 24V DC and capable of handling 0.5A current, this module provides the necessary power for driving actuators, solenoids, and other devices efficiently.
The inclusion of a comparator function and short-circuit protection safeguards against potential damage from overloads or unexpected electrical conditions, ensuring operational safety and longevity.
For ease of installation and flexibility, the B&R 7CM211.7 Output Module requires separate ordering of terminal blocks (2x TB718), allowing for a customized wiring configuration tailored to specific application needs.
