Manufactured Country:USA
Type Designation:Circuit Board
Series:Mark IV DS3800
Product Type:Speedtronic
Dimensions:17.8 x 25.4 x 5.5 cm
Weight:0.5 kg
Operating Voltage:DC 24V
Power Consumption:5W
Communication Interface:RS-485

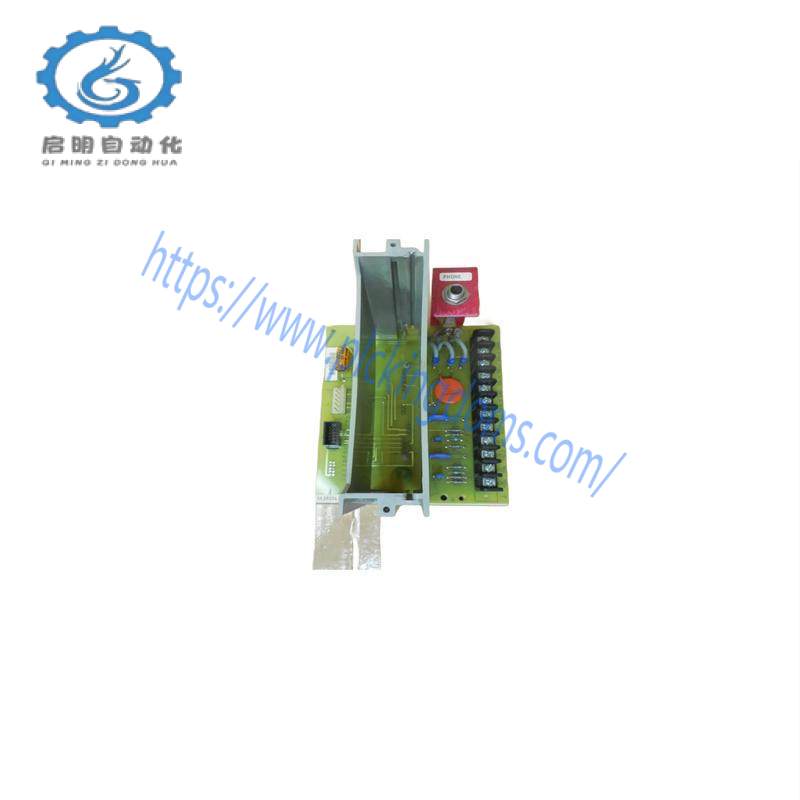

The General Electric DS3820LIMA1 is a premium circuit board designed for unparalleled reliability in industrial control systems. This board, featuring the DS3820LIMA model number and General Electric emblem, is meticulously manufactured in the USA, ensuring top-tier quality and durability.
Each component is carefully labeled with an alphanumeric code for easy identification and traceability. This board is not just a hardware component; it’s a cornerstone of complex industrial automation, seamlessly integrating with the Mark IV DS3800 series.
With a robust design that includes a white and five gold metal pronged male port, and a black male port with ten metal contacts, this board ensures secure and efficient data transmission and signal processing. It’s further enhanced with six light blue resistors that can restrict energy levels effectively, crucial for maintaining operational safety and efficiency.
The DS3820LIMA1 boasts a long, black terminal with twelve screw tops, providing versatile mounting options for integration within various industrial machinery. Its red power tower with a dedicated power port connects to metal bars with gold metal boxes and features three grey wires connected to blue connectors on the circuit board, offering seamless connectivity and energy management.
For optimal safety and installation procedures, AX Control recommends consulting the original manufacturer’s manual. Technical support was initially provided by General Electric, ensuring users have access to comprehensive guidance and assistance throughout the lifecycle of the product.
