Module Type:Profibus DPV1 Master
Product ID:MVI69-PDPMV1
Compatibility:Single-slot, 1769 backplane compatible
Memory Access:Input/Output module with access to processor memory
Data Transfer:Ladder Logic for data transfer between module memory and processor controller tags
Configuration:Sample ladder file included, configuration data from ProSoft Configuration Builder Software
Network Definition:Network definition provided by software for PROFIBUS network configuration
Communication Parameters:Flexible baud rate (110 to 115K), stop bits (1 or 2), data size (7 or 8 bits), parity (None, Even, Odd)
Timing Delays:Variable RTD timing delays (0 to 65535 milliseconds)
Floating Point Support:Supported, configurable for Enron, Daniel, and other implementations
Power Supply:220V AC power supply
Operating Frequency:30kHz
Certification:Certified product
Series Designation:Extended Module

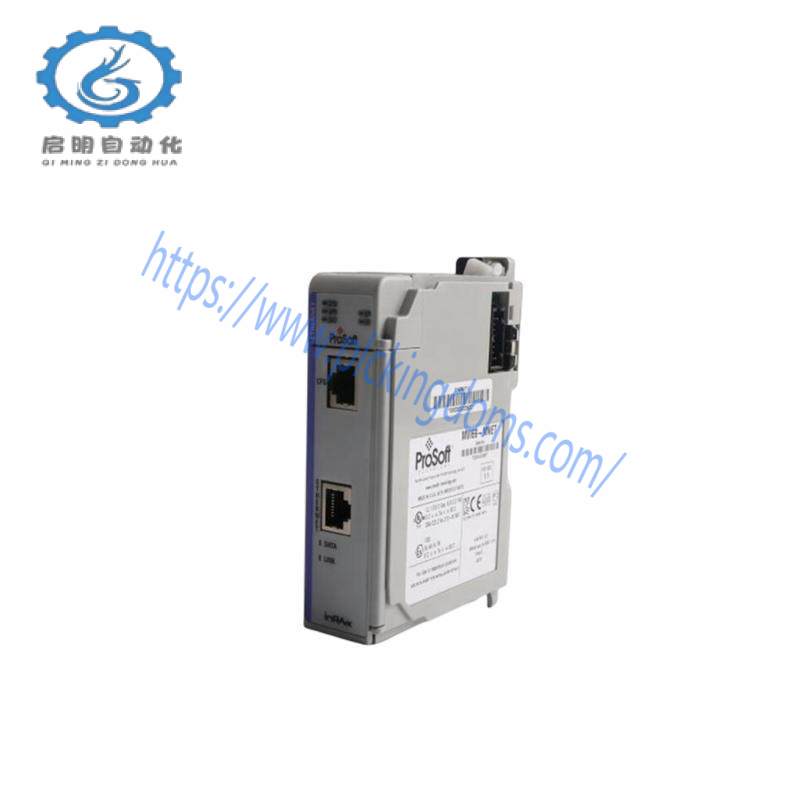

Experience unparalleled performance and reliability with our Prosoft MVI69-PDPMV1 PROFIBUS DPV1 Master Module, a crucial component in your industrial automation landscape. Designed to seamlessly integrate with Prosoft PLC processors, this module ensures robust communication within PROFIBUS DP networks.
Featuring a single-slot design compatible with the 1769 backplane system, this module seamlessly integrates into existing setups without requiring extensive modifications. It is recognized as an Input/Output module, granting you access to processor memory for seamless data transfer.
Utilize Ladder Logic for efficient data exchange between the module’s memory and the processor controller tags, streamlining your workflow and enhancing productivity. The inclusion of a sample ladder file with AOI (Area of Interest) ensures quick setup and easy customization according to your specific needs.
Our configuration data is obtained through the ProSoft Configuration Builder Software, providing a comprehensive solution for defining the PROFIBUS network. This tool simplifies the setup process, allowing you to tailor the network configuration to match your unique requirements.
With the ability to emulate Modbus Master or slave devices on each individually-configurable application port, the Prosoft MVI69-PDPMV1 PROFIBUS DPV1 Master Module offers unmatched flexibility and compatibility. Whether you’re upgrading an existing system or building a new one, this module ensures seamless integration and optimal performance.
