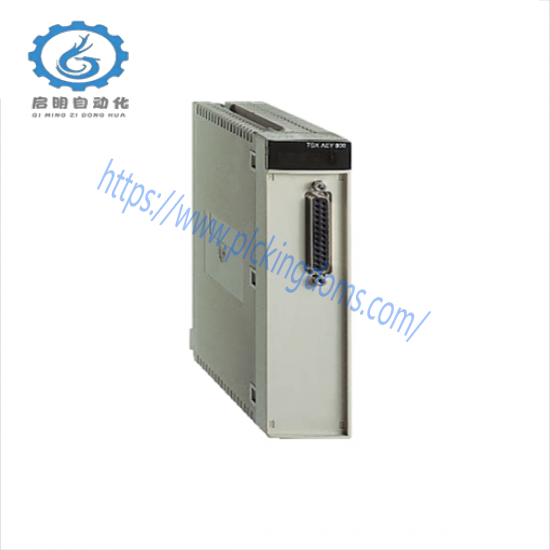

Schneider TSXAEY800 Analog Input Module

Product Type:Analog Input Module

Model Number:TSXAEY800

Brand:Schneider Electric

Analog Input Channels:8

Input Range:4-20mA, 0-20mA, ±10V

Analog/Digital Conversion:14-bit

Electrical Connection:DIN Rail Mount

Power Consumption:Max. 200mA at 5VDC

Operating Temperature:-20°C to +70°C

Humidity Range:5% to 95% non-condensing

Protection Class:IP20

    The Schneider TSXAEY800 Analog Input Module is designed to meet the demanding needs of industrial automation environments. This advanced module supports versatile signal acquisition, enabling accurate and reliable data collection from sensors across various industrial processes.

    Featuring 8 high-resolution analog inputs capable of measuring current (4-20mA) and voltage (+/- 10V), the TSXAEY800 ensures precise measurements necessary for effective process control and monitoring. The 16-bit analog-to-digital conversion provides exceptional accuracy, ensuring that even subtle changes in sensor readings are captured.

    With a SUB-D 25 connector for easy integration into existing systems, the module supports a wide range of industrial interfaces, facilitating seamless installation and maintenance. Its robust design withstands harsh industrial conditions, operating within a temperature range of -25°C to +70°C, ensuring reliability in diverse environments.

    Compliant with international standards such as IEC 61131-2 and IEC 61131-3, the Schneider TSXAEY800 is a trusted choice for adhering to global industrial automation specifications and safety guidelines. This makes it an ideal solution for industries seeking a high-performance, yet compliant, analog input module.

    Designed for ease of use, the TSXAEY800 Analog Input Module simplifies integration into Schneider‘s Modicon Premium Automation platform, allowing for quick setup and efficient system management. Its intuitive design and compatibility with a wide range of industrial protocols make it a versatile addition to any industrial control system.
