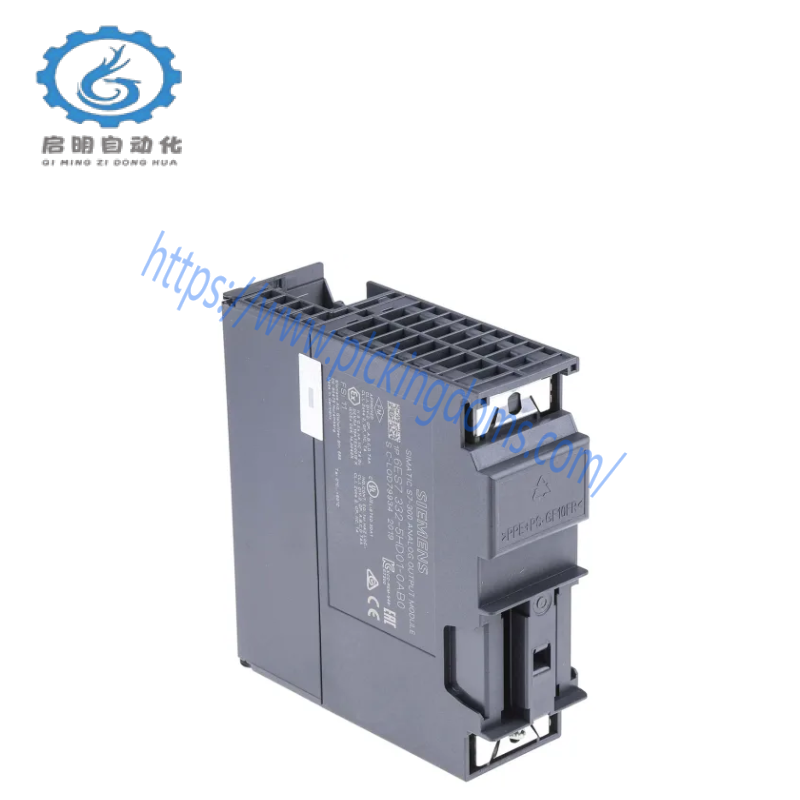

SIEMENS 6ES7331-7PF01-0AB0: Advanced Analog Input Module for S7-300 Series

Model Type:S7-300

Manufacturer:SIEMENS

Model Number:6ES7331-7PF01-0AB0

Isolation Type:Optically Isolated

Connection Type:2/3/4-wire

Analog Inputs:8

Bit Resolution:9/12/14

Supported Sensors:U/I, Thermocouple, Resistance, Pt100/200/1000, NI100/120/200/500/1000, CU10

Diagnosis Capabilities:Yes

Dimensions (WxLxH):13.10 x 15.10 x 5.10 cm

Weight:0.342 kg

Module Characteristics:GOST 16 (internal 24-bit)

Update Frequency:50ms

Pin Count:40-pin

    The SIEMENS SIMATIC S7-300 Analog Input SM331 is a versatile module engineered for seamless integration into complex industrial control systems. This module is renowned for its exceptional reliability and precision, providing a robust solution for monitoring and controlling processes in various industries.

    With its 24-bit resolution, the SM331 ensures unparalleled accuracy in data acquisition, making it suitable for applications requiring high precision measurements. Its optically isolated design enhances electrical safety and reduces interference, ensuring stable operation in harsh environments.

    Engineered for expanded temperature ranges (-25°C to +70°C), this module is ideal for installations where extreme environmental conditions are expected. It supports both 2-wire, 3-wire, and 4-wire connections, offering flexibility in cabling options and cost-effective solutions for different applications.

    Featuring integrated alarm and diagnostics capabilities, the SM331 provides real-time monitoring of input signals, alerting operators to potential issues before they escalate into critical failures. This proactive approach minimizes downtime and optimizes maintenance schedules.

    The compact 20-pin connector design facilitates easy installation and removal, enabling quick assembly and disassembly without compromising system integrity. This feature, combined with its durable construction, ensures long-term reliability and minimal maintenance requirements.
