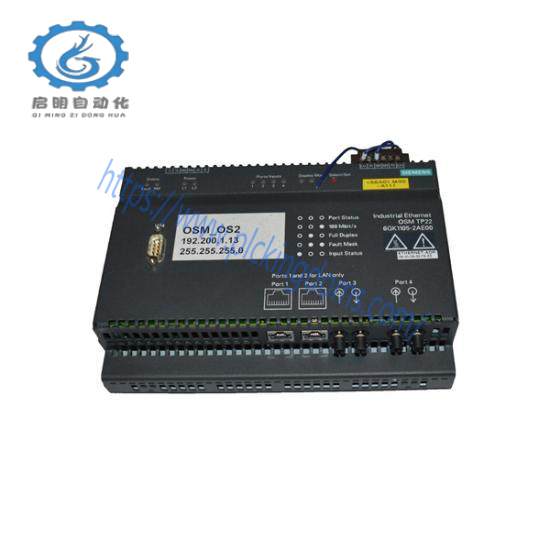

SIEMENS 6GK1105-2AE00 Optical Switch Module – TP22

Brand:SIEMENS

Model Number:6GK1105-2AE00

Type:OSM TP22 Optical Switch

Application:Industrial Automation

Operating Temperature:-20°C to +60°C

Supply Voltage:24V DC

Power Consumption:Typically 1.5W

Data Rate:100Mbps

Number of Ports:2

Connector Type:FOC Cable

Connection Type:RJ45

Switching Capacity:4K Switching Events

Operating Range:Up to 120 meters

LED Diagnostics:For monitoring status

Redundant Supply:24V DC

Redundancy Manager:Integrated

Network Management:Yes

Physical Dimensions:75 x 75 x 51 mm

Weight:Approximately 0.15 kg

Environmental Standards:Conforms to EN 61000-6-4, EN 61000-6-2

    The Siemens 6GK1105-2AE00 Optical Switch – TP22 is engineered to withstand harsh industrial environments, ensuring continuous and stable operation even under challenging conditions.

    Featuring a high switching frequency of up to 100kHz, this optical switch is capable of handling fast data processing demands in automation systems without compromising reliability.

    With its robust design and IP65/IP67 protection class, the switch can operate and be stored within a wide temperature range, from -25°C to +70°C for operational use and -40°C to +85°C for storage, making it suitable for various industrial settings.

    The inclusion of an M12 connector provides a secure and easy connection method, ensuring compatibility with a wide range of industrial equipment and facilitating quick setup and maintenance.

    This optical switch is ideal for applications requiring high precision and reliability, such as in manufacturing lines, logistics centers, and other industries where robust data communication is critical.
