Input Module Model Number:3511
Manufacturer:Triconex
Type:TMR, PI
Input Signals:8, non-commoned
Resolution:16 bits
Accuracy:1,000 Hz to 20,000 Hz, ± 0.01%
Input Characteristics:(AC coupled, balanced differential)
Update Rate:25 ms, typical
Impedance (load):> 8 KW, 20 KW typical
Common Mode Range:-100 VDC to +100 VDC peak-to-peak
Normal Mode Range:1.5 V to 200 V peak-to-peak
Overrange Protection:±150 VDC, continuous
Hysteresis:150 millivolts, typical
Wave Shape:Sine, square, pulse, etc.

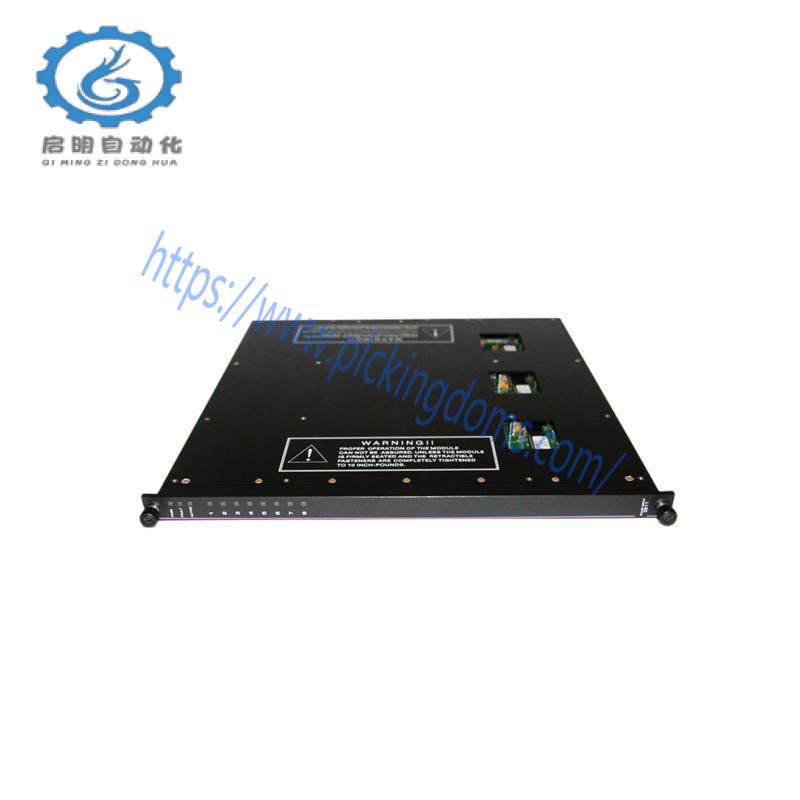

The TRICONE 3511 Pulse Module offers unparalleled precision in input signal processing, making it indispensable for industries requiring high reliability and accuracy.
Equipped with advanced AC coupling and balanced differential input characteristics, this module ensures robust performance even under challenging conditions.
With a resolution of 16 bits and accuracy ranging from 1,000 Hz to 20,000 Hz, ± 0.01%, the 3511 Pulse Module guarantees exceptional measurement precision.
Featuring an update rate of 25 ms, typical, and impedance compatible with loads above 8 KW and 20 KW, this module is optimized for efficient data processing.
The common mode range of -100 VDC to +100 VDC peak-to-peak ensures compatibility with various power supply scenarios, while the normal mode range from 1.5 V to 200 V peak-to-peak caters to a wide array of applications.
Designed with overrange protection at ±150 VDC and a hysteresis of 150 millivolts, the TRICONE 3511 Pulse Module safeguards against potential damage due to excessive voltage levels.
