Product Type:PLC Digital Output Module
Model Number:DO3401
Manufacturer:Triconex
Nominal Output Voltage:24 VDC
Operational Voltage Range:15 to 30 VDC
Absolute Maximum Output Voltage:33 VDC
Absolute Maximum Reverse Input Voltage:- 0.6 VDC
Switching Current:<4.8 A, self-limiting; 3.0 A, typical
Degraded Mode Current:> 0.7 A, self-limiting; 1.5 A, typical
Field Alarms:Loss of field power, output point shorted (On or Off)
Loop-back Thresholds:0–5 VDC = Off region; 6–14 VDC = transition region; 15–30 VDC = On region
Leakage to Load:Off state glitch, Duration <2 ms, Magnitude ≈36% test voltage
Output Impedance:0–5 VDC, ≈ 100 kΩ
ADC Scan Time:<1 ms for all 32 points
Functional Earth to Protective Earth Isolation:500 VDC, minimum
Functional Earth to Functional Earth (Logic Ground) Isolation:800 VDC, minimum

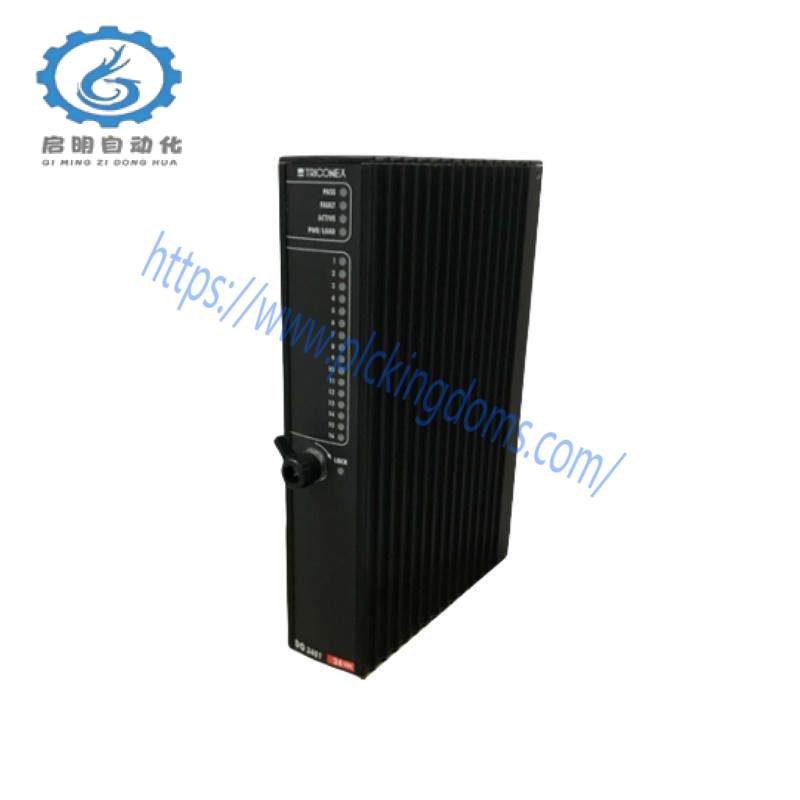

Engineered for industrial strength and reliability, the Triconex D03401 DO3401 Digital Output Module is designed to deliver consistent performance under demanding conditions. This module is an essential component for enhancing the precision and efficiency of your industrial automation systems.
Featuring a wide operational voltage range of 15 to 30 VDC, it ensures compatibility with various power sources, making it versatile for different applications. Its robust design withstands harsh environments, ensuring reliable operation even in challenging industrial settings.
With its high output current capability, the DO3401 module can drive a wide range of actuators and devices, providing the necessary power to control machinery and equipment with ease. The self-limiting feature prevents overcurrent and ensures safe operation, reducing the risk of system damage or failure.
Equipped with advanced diagnostic capabilities, this module includes Force-to-Value diagnostic (FVD) and loss of view detection, enabling quick identification of faults. It maintains diagnostic fault coverage at a rate of less than 20/sec, ensuring continuous monitoring and maintenance of system health.
The Triconex D03401 DO3401 Digital Output Module comes with a comprehensive set of specifications that cater to a broad spectrum of industrial automation needs. From its isolation features ensuring electrical safety to its high-quality materials, every aspect of this module is crafted to meet the highest standards of industrial control systems.
