Module Type:Analog Output
Model Number:AA1543-H00-S1
HART Communication:Yes
Output Range:4-20 mA
Input Range:0-10 VDC
Power Supply:12-36VDC
Operating Temperature:-40°C to +85°C
Protection Class:IP65/IP67
Dimensions:L x W x H (mm)
:120 x 90 x 75
Weight:0.25 kg

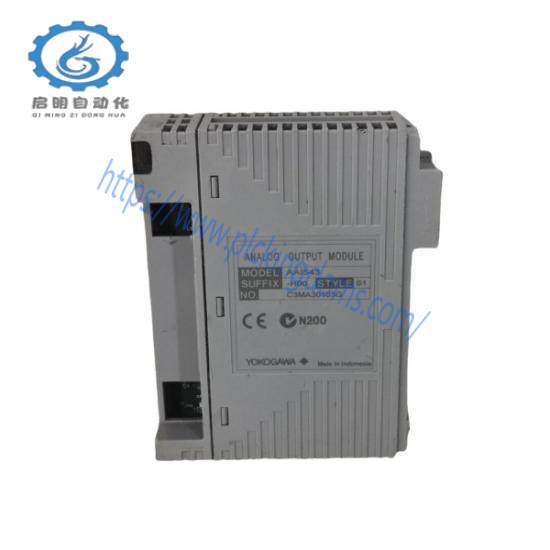

The Yokogawa AA1543-H00-S1 module is engineered for high-precision analog output, making it ideal for applications requiring accurate control signals. It supports HART communication, enabling users to monitor and control devices remotely via advanced digital protocols.
With its robust design, the module ensures reliable operation across a wide range of industrial environments, from freezing cold climates to hot industrial settings. Its temperature tolerance of -20°C to +70°C guarantees consistent performance under various conditions.
Featuring two relay outputs, this module offers versatile functionality, supporting diverse applications such as alarm systems, motor control, and process automation. The relay outputs are designed for both normally open and normally closed configurations, providing flexibility in system integration.
The module’s 4-20mA current loop output is compatible with a wide array of field devices, facilitating seamless integration into existing control systems. This feature minimizes installation costs and simplifies maintenance.
Equipped with a DC 24V power supply, the AA1543-H00-S1 ensures stable operation even in power-sensitive environments. Its high accuracy (+/- 0.1% F.S.) ensures that critical control processes are executed with precision, leading to improved operational efficiency and reduced errors.
